10 pc Spindle Liner Sets
10 pc Spindle Liner Sets
Couldn't load pickup availability
Save 20% with full sets!

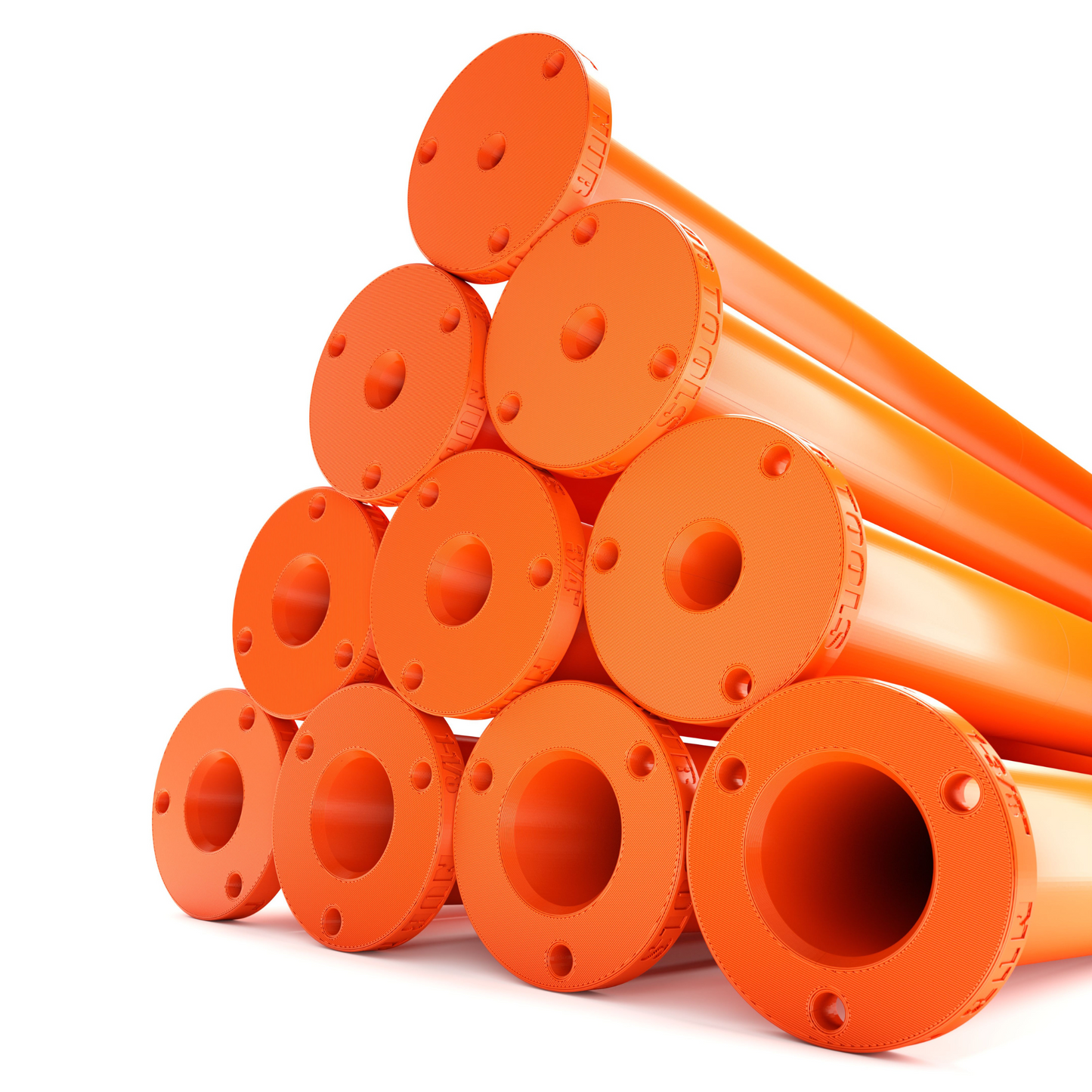

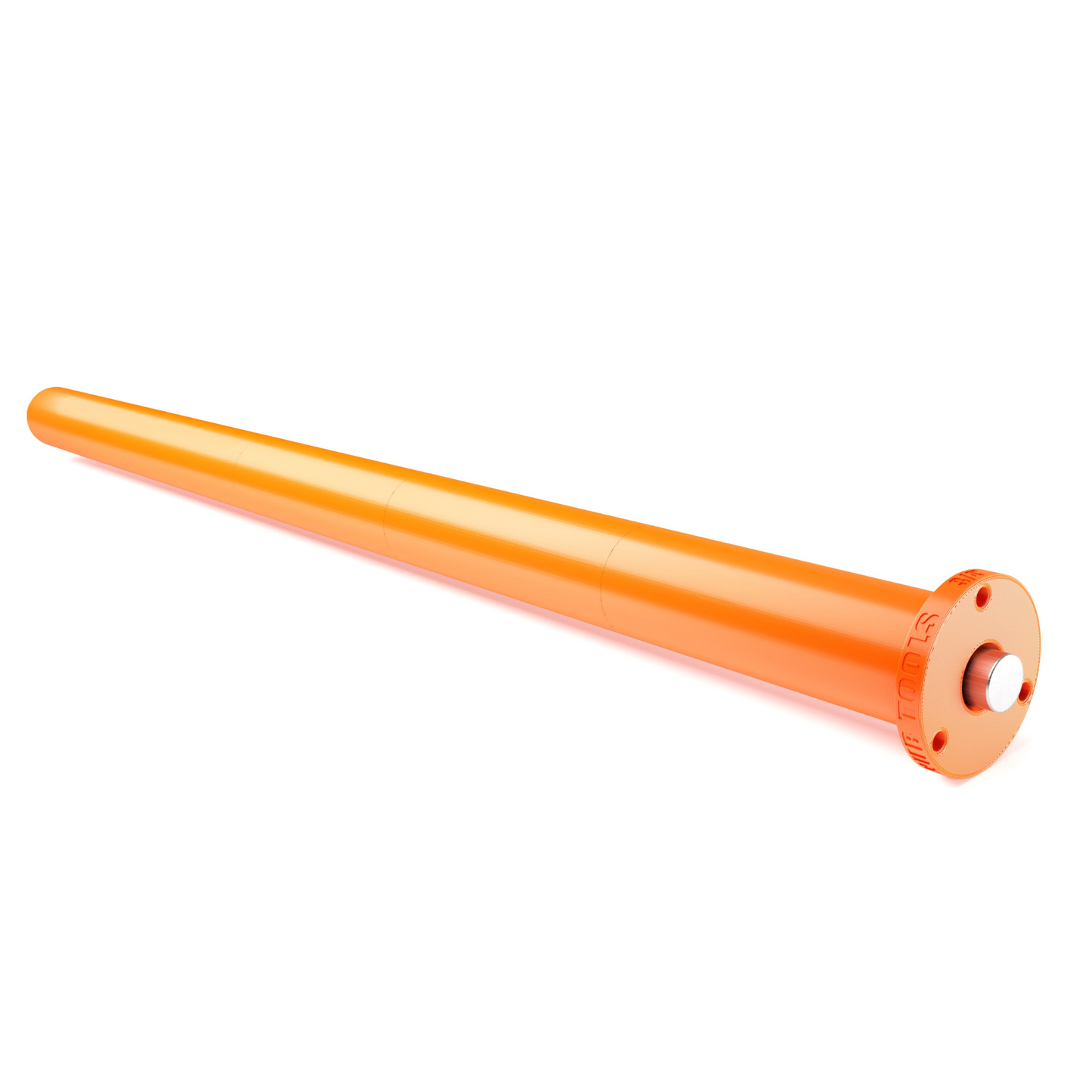

The Nub Tool's 10 Piece, full-length Lathe Spindle Liner set are made to order in as little as 5-10 business days. from 3D Printed Polyurethane. No longer must supporting your material be a tiresome task or a budget breaking investment. You tell us what sizes you want, and we'll make it happen! Our standard liners are as shown with a round I.D., if you need something weird, contact us before purchasing.

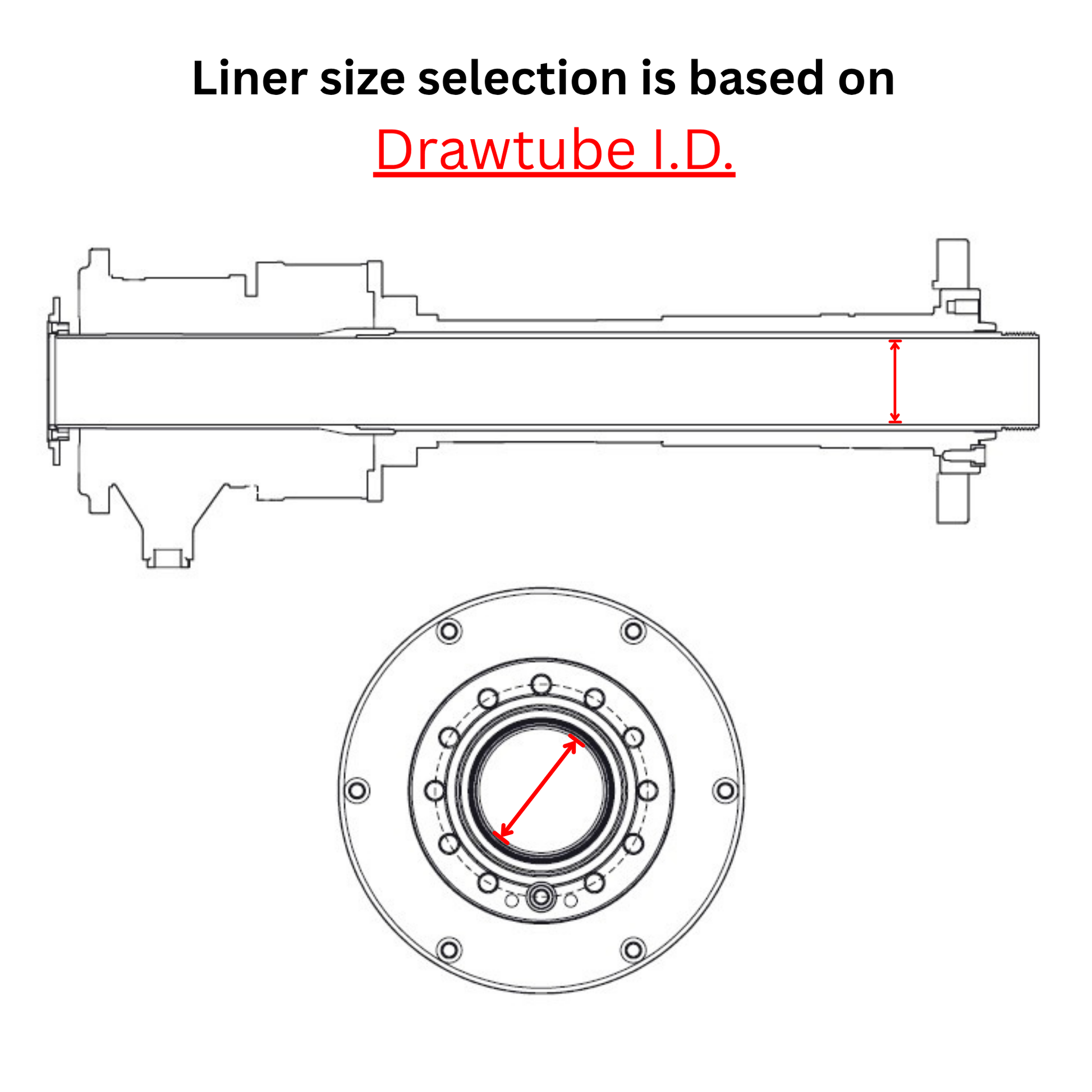

How do I choose the right liner sizes? Measure the inside diameter of your lathes' Spindle/Drawtube. Select the size option that your measurement falls within. This is the price, regardless of length or bar size.
How do I choose my bar sizes? See below.
*After you place your order, you will receive an order confirmation email with a link to a form. There you will list your bar size requirements and detailed measurements. Please complete as soon as possible. Lead times start after the form has been submitted.
The clearances and dimensional tolerances to expect are described below. Â
Standard Tolerances:
Liner O.D.    .010"-.030" undersized
Liner I.D.     .015" -.035" oversized
We can make spindle liners for your Haas Lathe, Mazak lathe, Doosan lathe, DN Solutions, Puma, Daewoo, Okuma, Mori Seki just to name a few.
