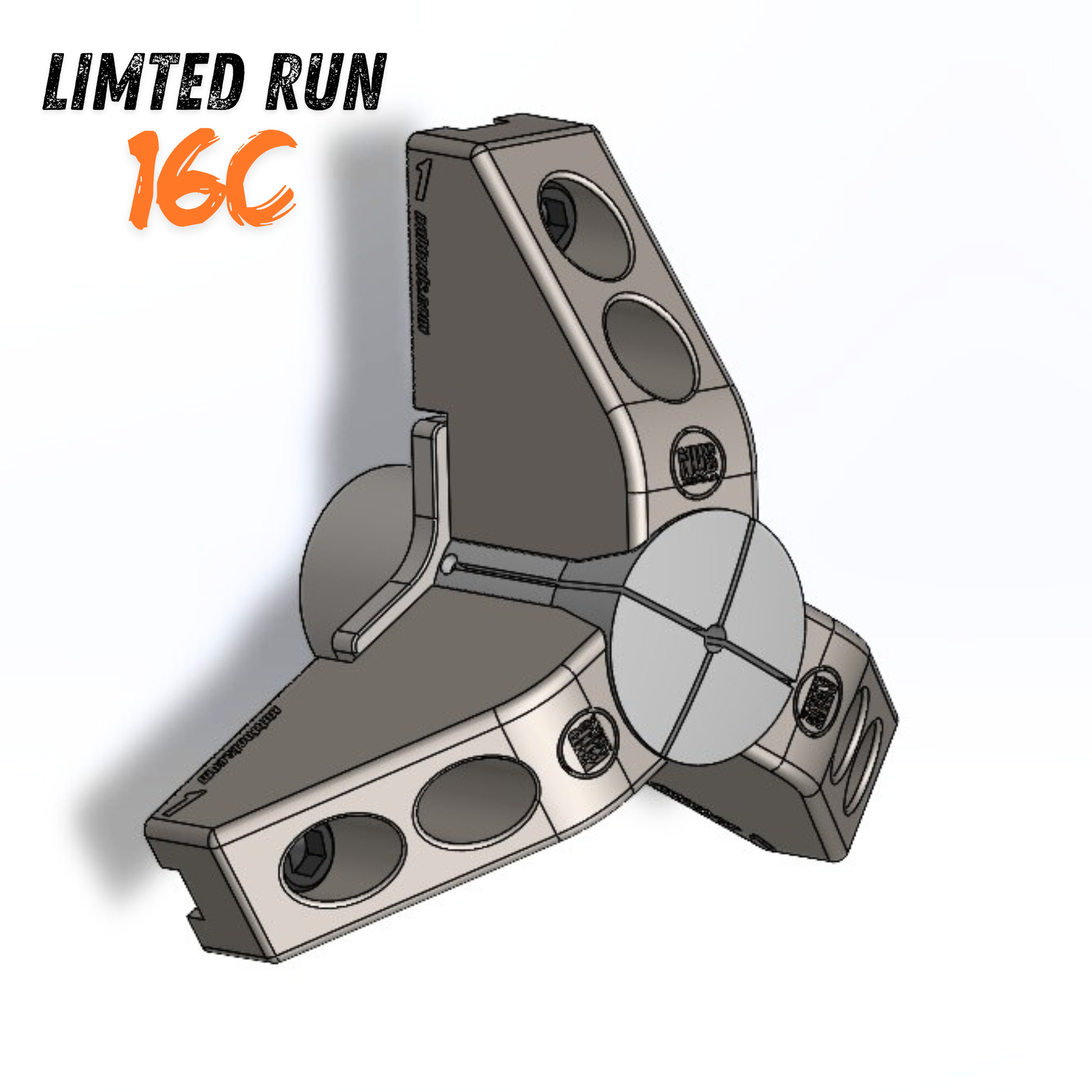

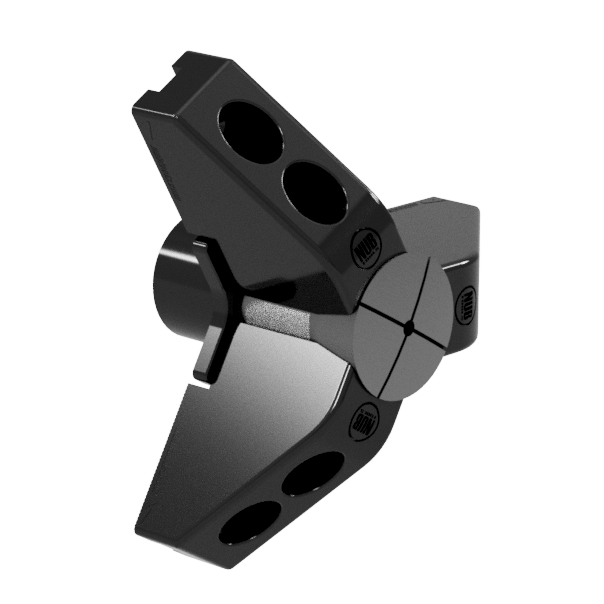

Limited Gen 2 16C Collet Chuck System

Limited Gen 2 16C Collet Chuck System

Chuck Size
$1,350.00
$1,350.00
Sale Sold out
Shipping calculated at checkout.

You asked for it, we are going to bring back our 16C 3 Jaw Chuck Systems for a single production run and for the first time in the Gen 2 style. If you have been waiting, now is the time as we may not bring them back for good.

We will be taking orders through April 15th. Deliveries will start in Mid-May. Do not order if the wait is unbearable.

The Nub Tools CNC Collet Chuck System, also known as a "Master Jaw System", is for CNC power chucks. A cost effective and efficient alternative to a standard collet chuck that eliminates the need to remove your chuck from the machine. This system provides a positive stop-dead length for repeatable part lengths when using a collet workstop. Installation is as fast and easy as installing a set of soft jaws. The ability to switch workholding with standard jaws to running collets in just minutes will skyrocket your shop's productivity.

*A total runout average of .001" - .003" can be expected out of the box with a chuck in good condition and quality collets.

Find the collet system that matches your specifications.  If you don't see matching specification for your chuck, please Contact Us to determine the correct system needed.

Fitment:

Your chuck must have a minimum chuck bore inside diameter of 45mm.

Jaw Specifications:
Chuck               Groove          Hole Spacing
  8"               .551" (14mm)       .984" (25mm)
10"               .630" (16mm)     1.181" (30mm)

*All Jaws have a 1.5mm x 60 Degree Serration
*All Jaws are 3" Tall



*T-nuts and jaw mounting bolts not included.

*Due to the length of the 16C Jaws, jaw deflection can be more prominent and justify an initial jaw skim cut to your chuck and clamping pressures. Instructions in kit on this process.

*Run out is measured with a 2" long pin, 1" hang out. Proper material support with long bars is crucial. Your collet jaws can be skim cut to be true to your machine for greater accuracy. Instructions provided.
