Gen 2 5C Collet Chuck System

Gen 2 5C Collet Chuck System

Chuck Size
$990.00
$990.00
Sale Sold out
Shipping calculated at checkout.

PREORDER LEAD TIME- SEE DETAILS

All orders placed with us directly will not begin shipping until November 2nd. Please do not order if you cannot wait. All orders will be manufactured in the order they are received. Contact us if you have any questions. Thank you

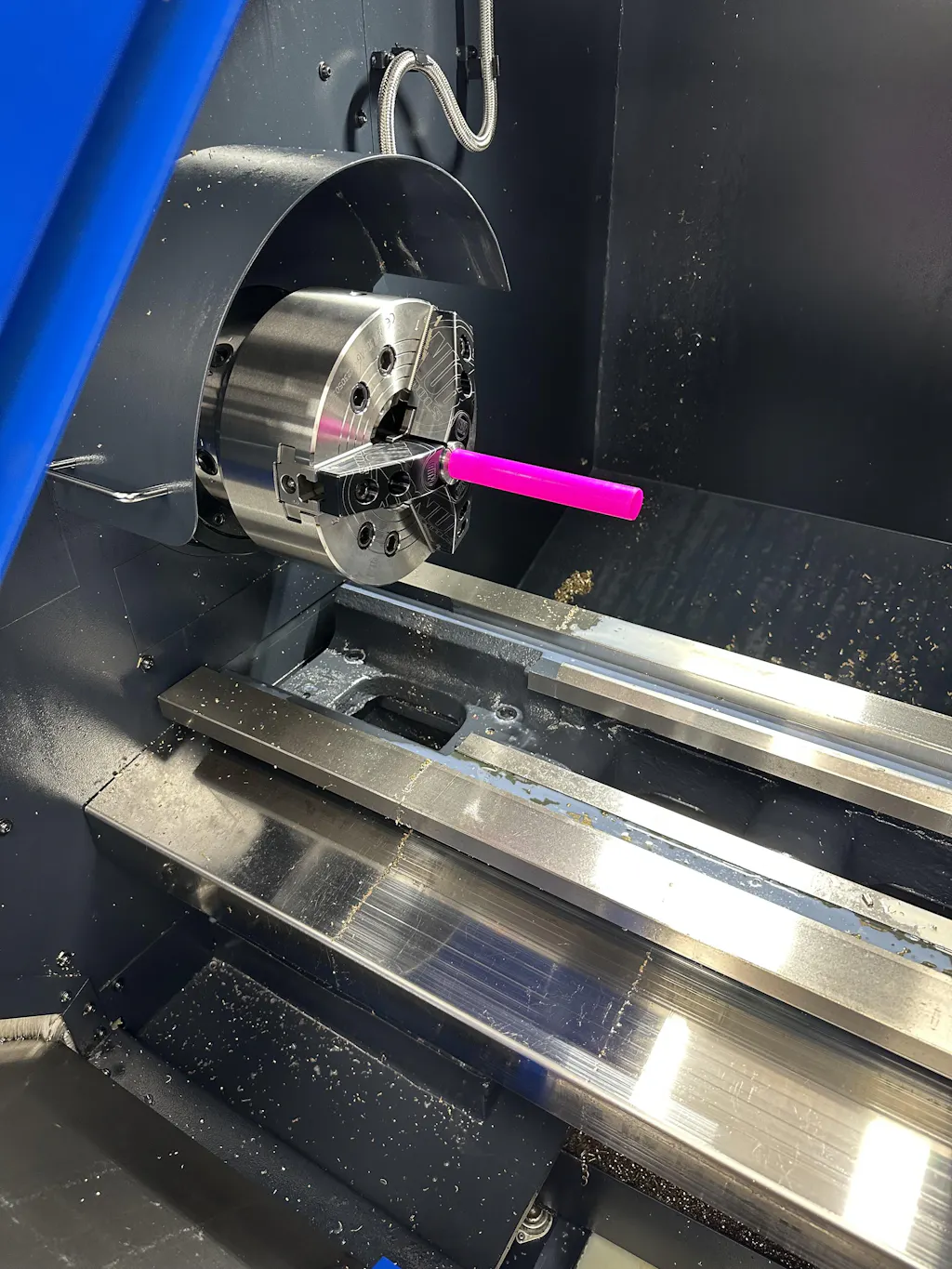

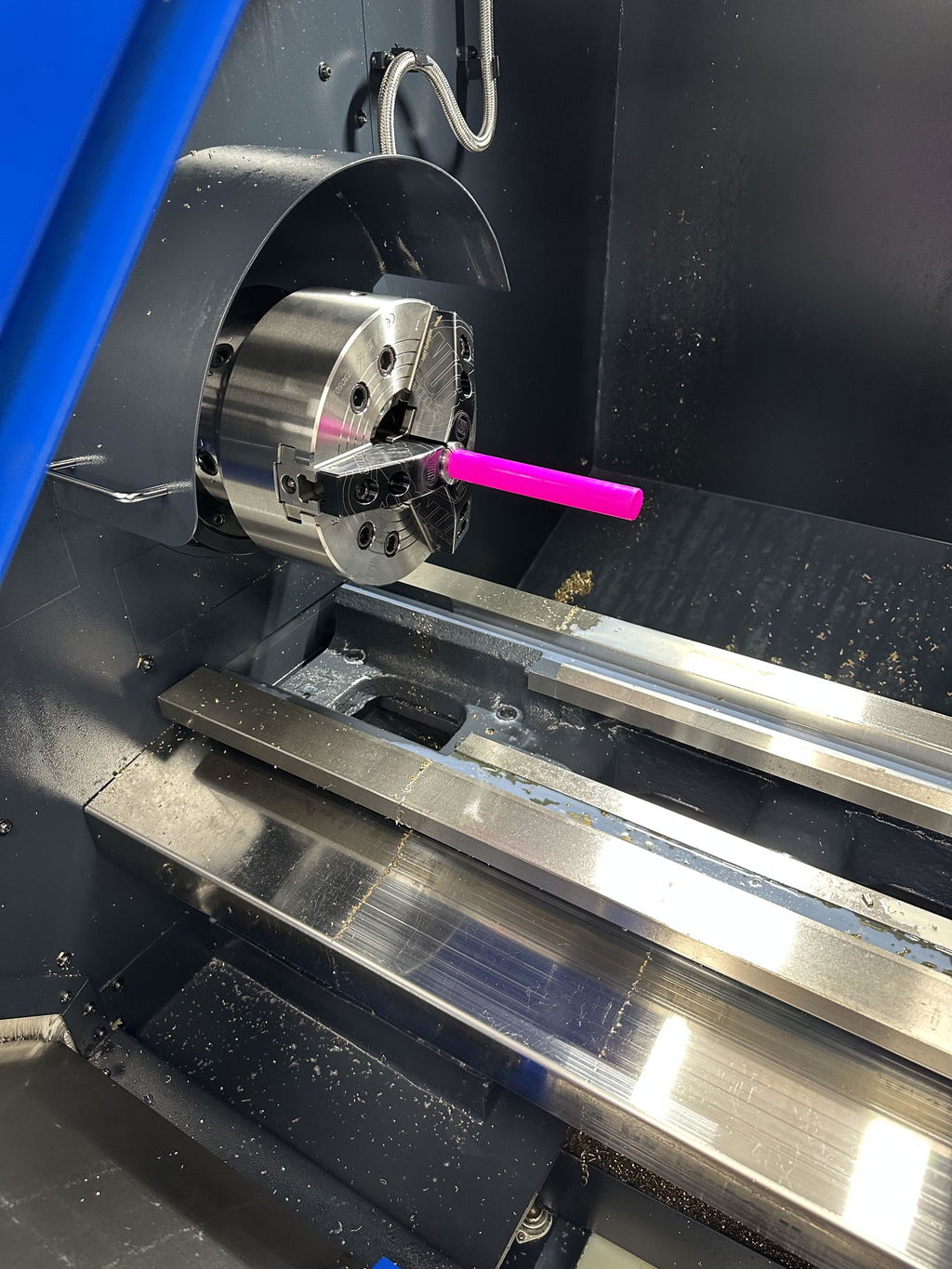

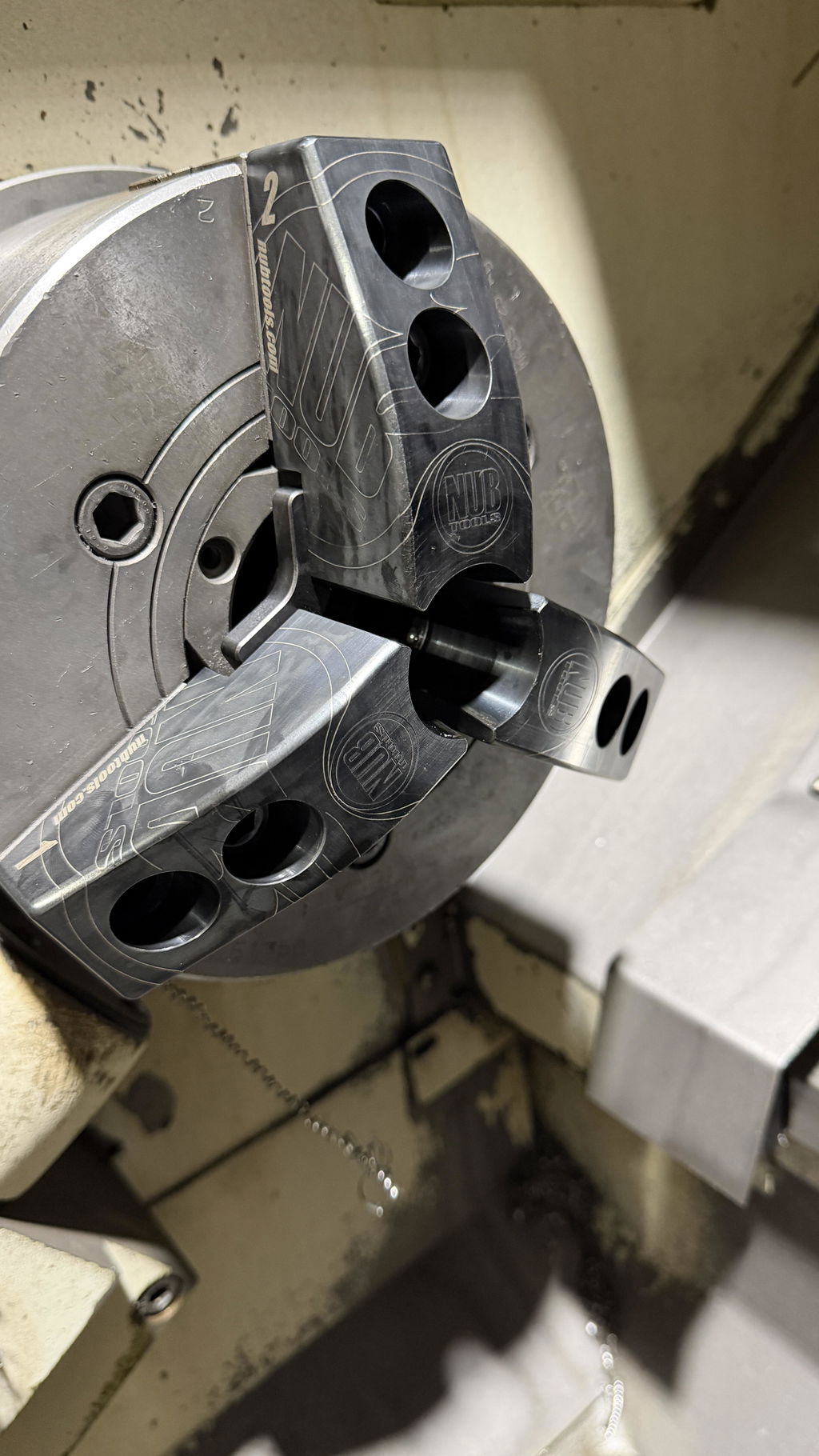

The Nub Tools CNC Collet Chuck System, also known as a "Master Jaw System", is for CNC power chucks. A cost effective and efficient alternative to a standard collet chuck that eliminates the need to remove your chuck from the machine. This system provides a positive stop-dead length for repeatable part lengths when using a collet workstop. Installation is as fast and easy as installing a set of soft jaws. The ability to switch workholding with standard jaws to running collets in just minutes will skyrocket your shop's productivity.

*A total runout average of .001" - .003" can be expected out of the box with a chuck in good condition and quality collets.

*THESE DO NOT WORK WITH I.D. GRIPPING PULL BACK MANDRELS

Find the collet system that matches your specifications.  If you don't see matching specification for your chuck, please Contact Us to determine the correct system needed.

Fitment:

Your chuck must have a minimum chuck bore inside diameter of 45mm.

Jaw Specifications:
Chuck               Groove          Hole Spacing
  6"               .472" (12mm)       .787" (20mm)
  8"               .551" (14mm)       .984" (25mm)
10"               .630" (16mm)     1.181" (30mm)
12"               .827" (21mm)     1.181" (30mm)
*All Jaws have a 1.5mm x 60 Degree Serration
*All Jaws are 2" Tall



*T-nuts and jaw mounting bolts not included.

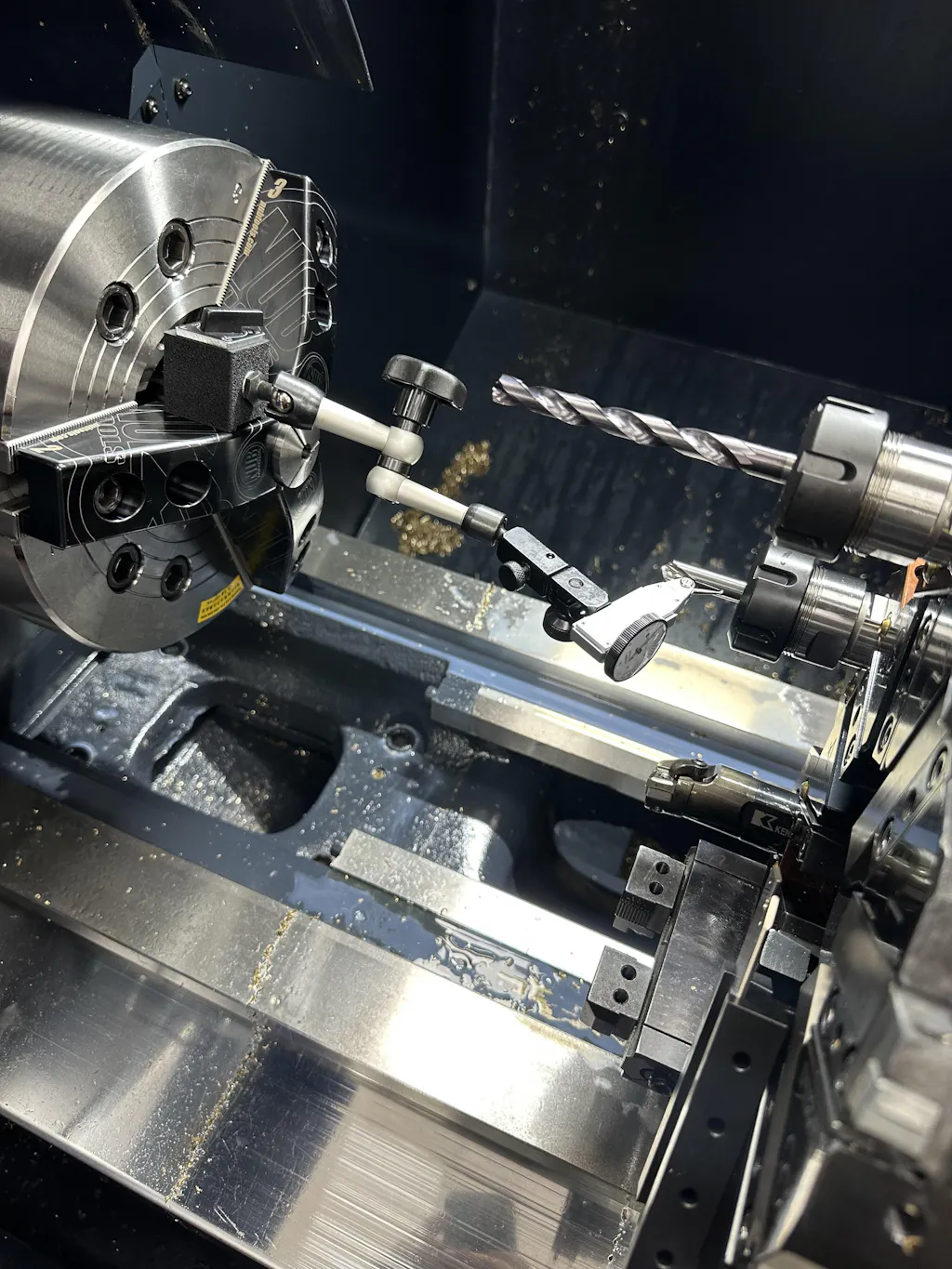

*Run out is measured with a 2" long pin, 1" hang out. Proper material support with long bars is crucial. Your collet jaws can be skim cut to be true to your machine for greater accuracy. Instructions provided.
